PRESENTING

HoloDi S1 SoC

HoloDi is a secure System-on-Chip (SoC) built on open-source RISC-V architecture with secure element class features

Based on baochip-1x

PACKAGE LID

BOND WIRE LAYER

SILICON DIE

SUBSTRATE

CONTACT PADS

WHAT WE DO

HoloDi is a secure System-on-Chip (SoC) built on open-source RISC-V architecture with secure element class features*

The HoloDi S1 SoC functions as a transparent and sovereign security processor, engineered for independent verification across the entire stack. By enforcing critical safety protocols directly in silicon, HoloDi provides a verifiable safeguard for essential infrastructure. We focus on customized firmware and attestation for your secure hardware approach.

*based onbaochip-1x

Classical figures assembling a locked processor on a stone pedestal

HARDWARE

A chip that can be independently inspected, verified, and manufactured sovereignly.

Auditable all the way down to the physical silicon: the chip design is open, the firmware is reproducible, and the final fabricated die can be optically inspected.

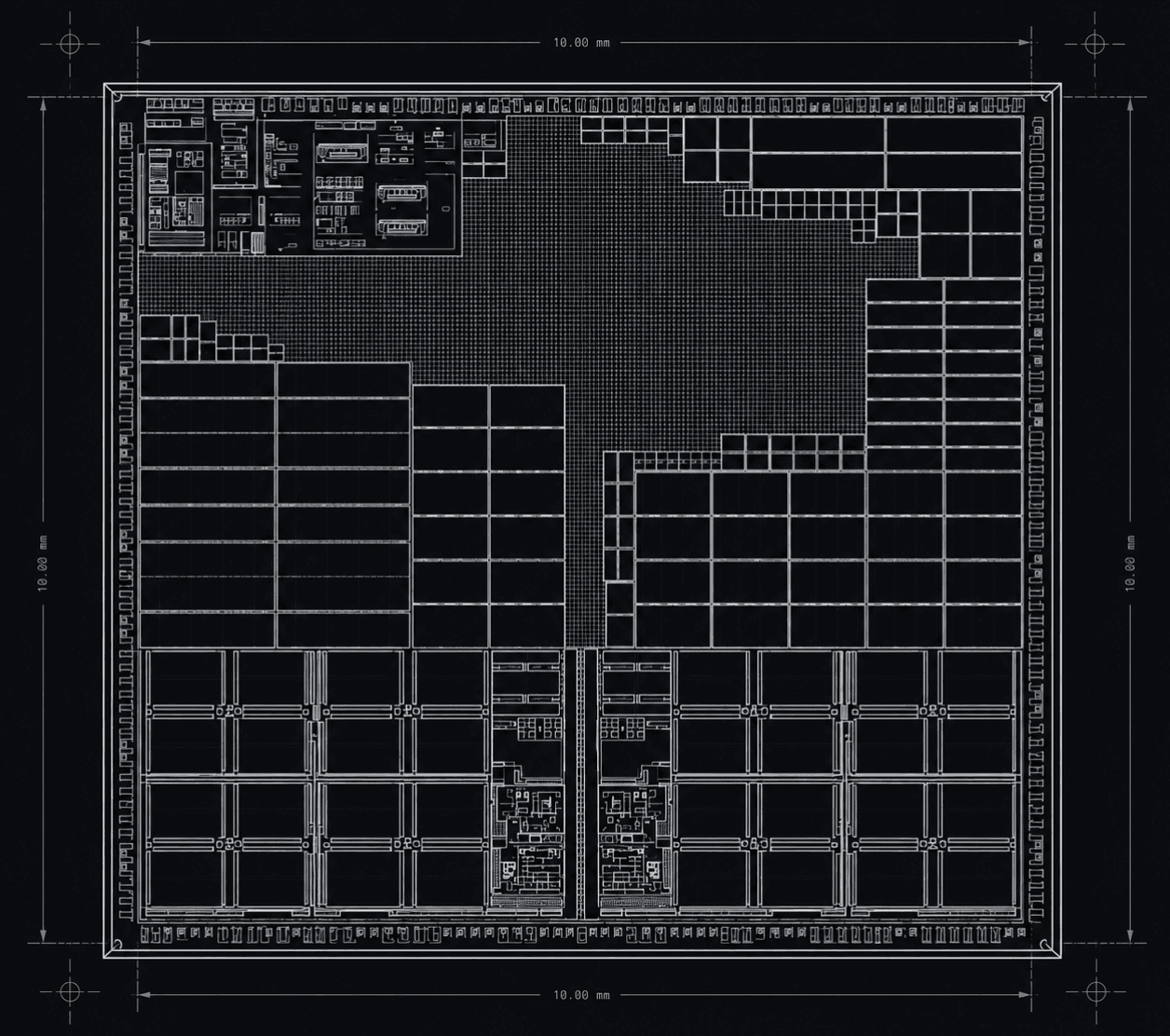

Floorplan of the HoloDi S1 die, 10.00 mm square, showing the core, memory and I/O blocks.

RRAM

4 MiB, Non-volatile on-die

SRAM

2 MiB + 256 KiB I/O with ECC

CPU CORE COMPLEX

RISC-V RV32-IMAC@350 MHz Full MMU with paged virtual memory & Zkn Crypto ext

ALWAYS ON

RTC; power reset; WDT

BIO

I/O coprocessor 4 × PicoRV @ 700 MHz

ANALOG/MS

PLL; USB HS; ADC; reg

CRYPTO

AES, RSA/ECC, SHA-2/3

LOW LEAKAGE

22 nm TSMC Ultra Low Leakage

KEYS + TRNG

Key store, entropy & one-time counters

RRAM: 4 MiB, Non-volatile on-die
SRAM: 2 MiB + 256 KiB I/O with ECC
CPU CORE COMPLEX: RISC-V RV32-IMAC@350 MHz Full MMU with paged virtual memory & Zkn Crypto ext
ALWAYS ON: RTC; power reset; WDT
BIO: I/O coprocessor 4 × PicoRV @ 700 MHz
ANALOG/MS: PLL; USB HS; ADC; reg
CRYPTO: AES, RSA/ECC, SHA-2/3
LOW LEAKAGE: 22 nm TSMC Ultra Low Leakage
KEYS + TRNG: Key store, entropy & one-time counters

FIRMWARE: ENFORCED BY HARDWARE

Security Peripherals as building blocks for securing systems.

Auditable all the way down to the physical silicon: the chip design is open, the firmware is reproducible, and the final fabricated die can be optically inspected.

Signed & Measured Boot: Only Authenticated firmware & code runs
Remote Attestation: Remotely proves what’s exactly running
On-die Key Store + Hardware TRNG: Random Keys generated & Kept on-chip
Trusted Time + Monotonic counters: Anti-rollback & Freshness
Cryptography: AES. RSA/ECC, SHA-2/3: Encrypt, sign and verify at the hardware level
Quantum Secure: ML-KEM, ML-DSA: Post-quantum Ready
Glitch/fault sensors, ECC memory: Active Tamper Mesh + Sensors for defence
Key Zeroize on Tamper: Instant Key Zeroize on capture attacks

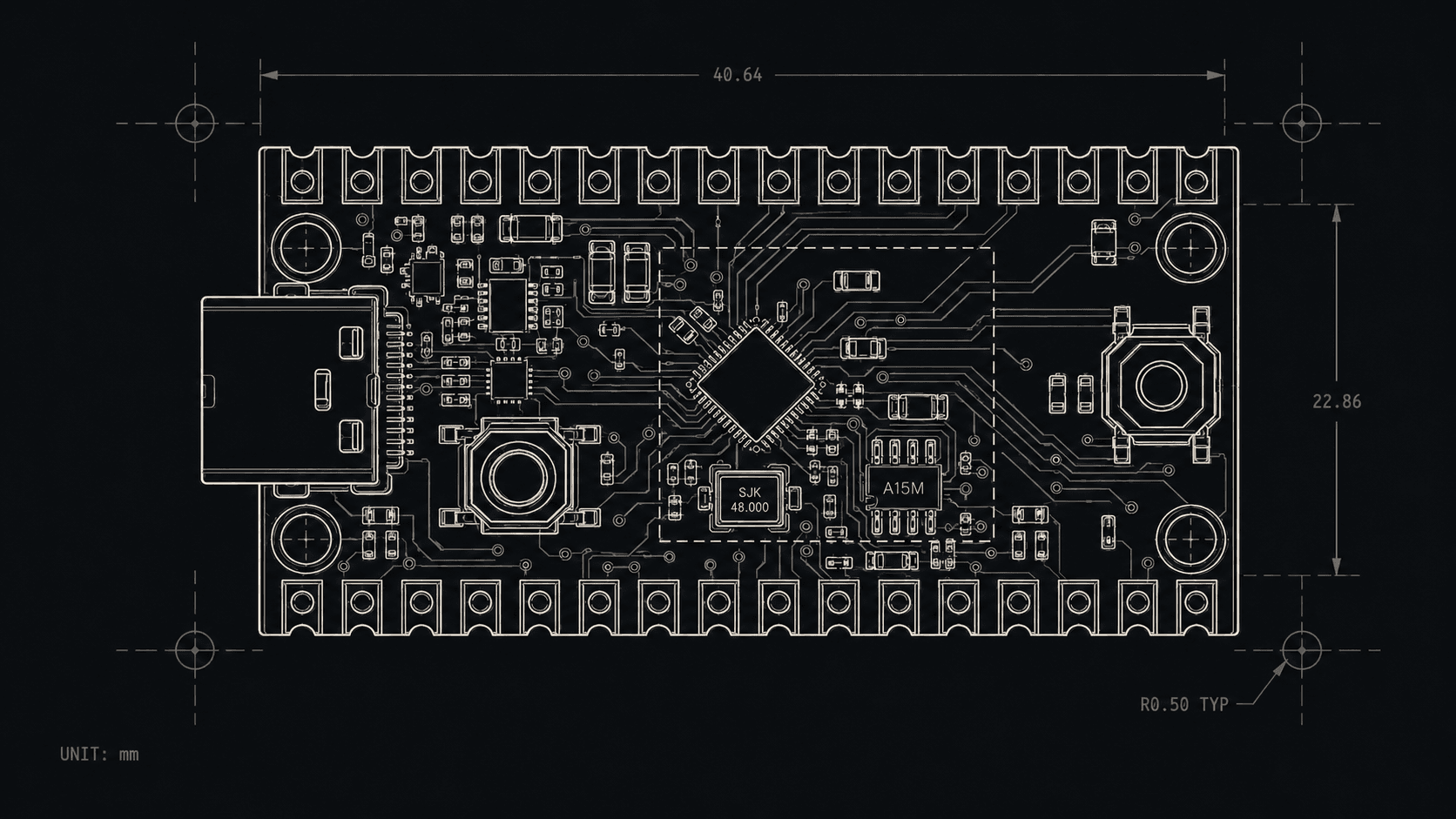

Dimensioned plan drawing of the Ledgerless carrier board, 40.64 by 22.86 mm, with the secure element at centre.

An isolated hardware anchor

root of trust

Bronze figures in classical dress tending a monument whose circuitry has grown over with roots

FIRMWARE: ENFORCED BY HARDWARE

Use cases & Application

Auditable all the way down to the physical silicon: the chip design is open, the firmware is reproducible, and the final fabricated die can be optically inspected.

Autonomous Defence Systems

A platform the enemy can't take over. Commands signed in hardware, firmware attested before flight, keys that vanish on capture.

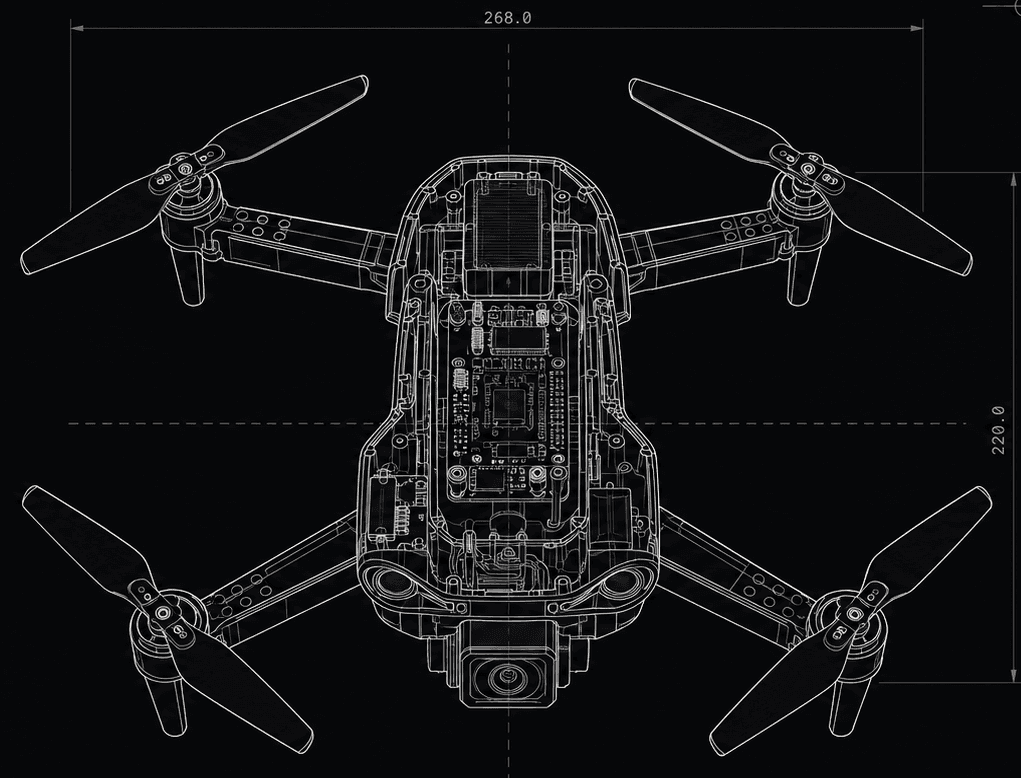

Dimensioned plan view of a quadcopter, 268 by 220 mm, with its flight-control board exposed.
